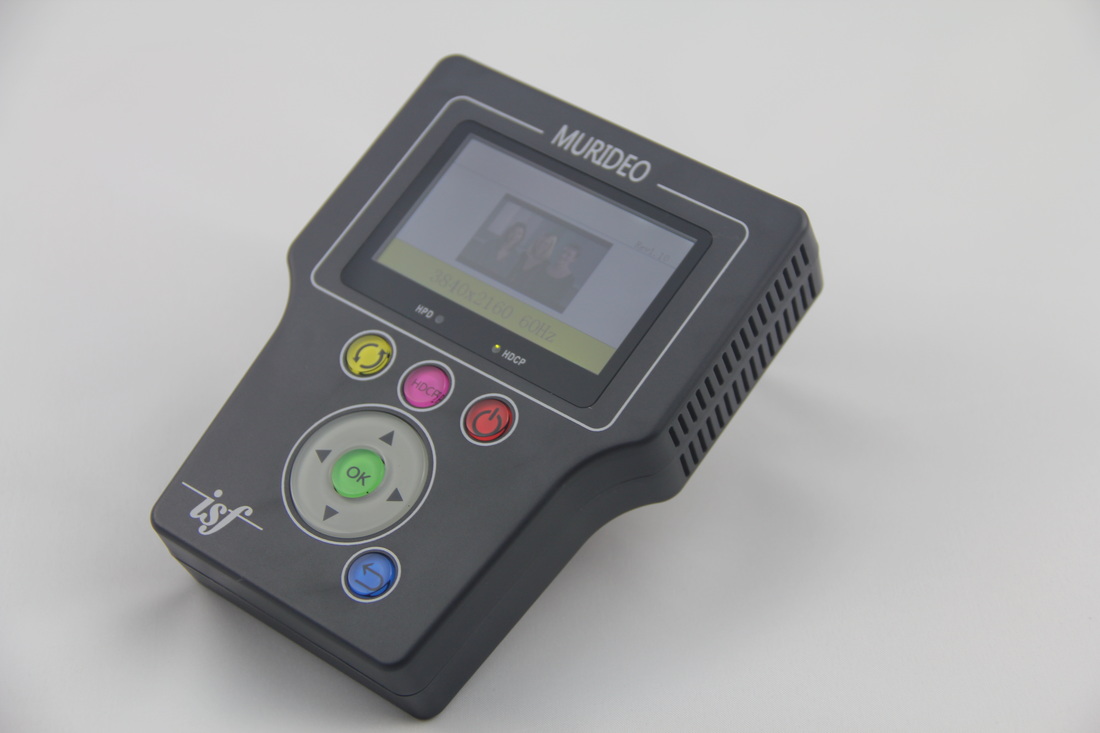

Murideo SIX-G 4K HDRパターンジェネレーター


Murideo SIX-Gは、4K及びHDR10に対応したコンパクトなパターンジェネレータです。
CalMAN及びLightSpace CMSと互換があります。


Technical Specifications
HDMI 2.0(a)  – 600Mcsc, 2160P60 4:4:4 maximum resolution
HDR (High Dynamic Range) Injector, and management
Video Bandwidth - 18 GBP/sec.
Supports BT.2020
Dolby Vision Support
4K 10, 12, 16 Bit Support
Dolby Vision Support
HDCP 2.2 Compatible
16 Bit Per Pixel Deep Color Depth Available (48 Bit)
2600 MAH Battery
DC 5V Power

HDCP Select-able - 2.2, 1.4, None – Confirms if the system will work or not
Hot Plug Detect & HDCP lights
Portable/Battery Operated
EDID Read Functionality
Create Custom Resolutions
Audio Confidence Tests
L/R Audio In
Optimized Ergonomics – 3” Color Display, Simplified Menus

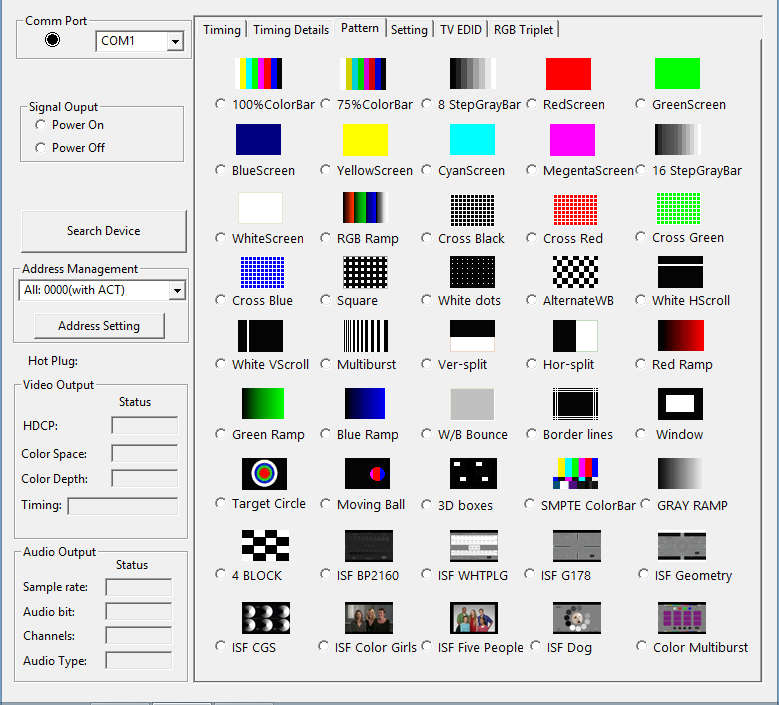

Includes Free PC Control Software
RS232 or USB Controllable





Settings: Resolutions Supported:

Color Modes: VESA: Std Video:
RGB (0-255) 640x480 480i (59.94)
RGB (16-235) 800x600 480P (59.94)
YC444 1024x768 720P (59.94)
YC422 1280x768 720P (60)
YC420 1360x768 1080i (59.94)
AUTO 1280x960 1080i (60)
Operating Modes: 1280x1024 1080P (23.94)
HDMI 1400x1050 1080P (24)
DVI 1600x1200 1080P (29.97)
AUTO 1900x1200 1080P (30)
    1080P (59.94)
HDCP Modes:   1080P (60)
OFF 3D Video:
HDCP 1.4 720P 3D (59.94) 4K Video:
HDCP 2.2 720P 3D (50) 4K (23.98)
  720P 3D (60) 4K (24)
Deep Color Depth: 1080P 3D (23.98) 4K (25)
8 bit 1080P 3D (24) 4K (29.97)
10 bit   4K (30)
12 bit   4K (50)
16 bit 25/50 FPS: 4K (59.94)
AUTO 576i (50) 4K (60)
  576P (50) SMPTE 4K (23.98)
EDID Functions: 720P (50) SMPTE 4K (24)
Read EDID 1080i (50) SMPTE 4K (25)
Save EDID 1080P (25) SMPTE 4K (29.97)
Open EDID 1080P (50) SMPTE 4K (30)
    SMPTE 4K (24)
    SMPTE 4K (50)
*SMPTE 4K = 4096x2160 SMPTE 4K (59.9)
**4K = 3840x2160                 SMPTE 4K (60)


製品定価 オープン価格 市場想定価格¥300,000.-(税別)
